HYBROMAX Hydropneumatic Press Machine

We have started manufacturing hydropneumatic cylinder-driven PLC-controlled press machines. We produce them with forces ranging from 5 to 50 tons. Our products are 100% domestically manufactured.

"The speed of pneumatics, the power of hydraulics"

HYBROMAX-70KN:
• It is a hybrid system combining pneumatic and hydraulic systems.
• It only works with a standard air compressor of 1-8 bar.
• Fast (speed adjustable) pneumatic approach, hydraulic clamping.

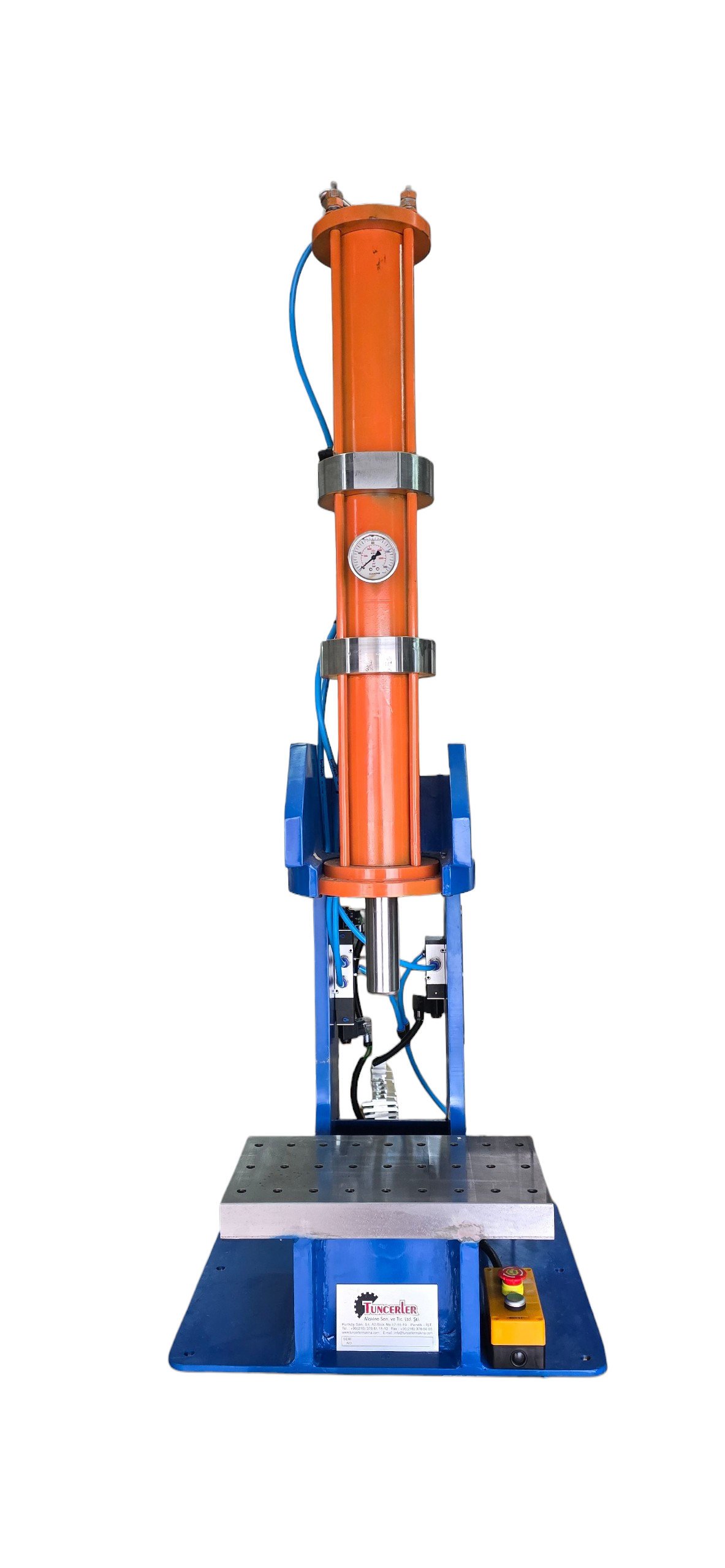

• 7 tons of force (Model in the picture).
• 150mm total stroke.
• 35 mm power (pressure) stroke. • Fully automatic with dual buttons and PLC control.
• High electricity savings.
• Suitable for environments such as laboratories due to its quietness and cleanliness.
• No hydraulic power unit or motor, etc.
• Requires 220V single-phase electricity for the PLC control unit. • Practical force adjustment valve between 0-7000 kg.
• Determining the pressure duration with PLC control.
• With pressure damping system.
• Continuous constant pressure and zero electricity requirement without the need for a locking valve during the pressure cycle.
• Operates at high speed. Min. Cycle time is 4 seconds. It increases depending on the pressing time.
• It silently serves you in every field requiring controlled power, such as sheet metal bending, bushing and bearing insertion, punching, gasket pressing, die cutting, sheet metal stamping, and part assembly.
• Suitable for desktop use. Dimensions: 600x550x1430mm
